Wood CNC Router with Pneumatic Cylinders 4 Spindles Pneumatic Tool Changing Atc Woodworking Machine
Wood CNC Router With Pneumatic Cylinders 4 Spindles Pneumatic Tool Changing ATC Woodworking Machine Product Description
Description
Basic Info.
| Model NO. | K-4 1325 |
| Body Structure | Strong Thicknen Steel Made |
| Z Structure | Taiwan Tbi Ball Screw |
| Working Dictate | G Code |
| Max Moving Speed | 43000mm/Min |
| Spindle Quantity | 4PCS |
| Working Area | 2500*1300mm |
| Operating System | Nc Studio |
| Collect | Er 25 |
| Model | K-4 1325 |
| Working Length | 2500mm |
| Name | 4 Spindle CNC Router |
| Max Engraving Speed | 25000mm/Min |
| Working Width | 1300mm |
| Spindle Power | 3kw*4 |
| Working Thickness | 200mm |
| Transport Package | Wooden Case |
| Specification | 3000*2000*900mm |
| Trademark | HiWinstar |
| Origin | China |
| Production Capacity | 100set/Month |
Product Description
Wood CNC Router With Pneumatic Cylinders 4 Spindles Pneumatic Tool Changing ATC Woodworking Machine
Product Description| Description | Parameter |
| X,Y,Z Working Area | 1300*2500*300mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.05mm |
| X,Y,Z Repositioning Accuracy | ±0.05mm |
| Table Surface | T-slot Aluminum +PVC or Vacuum adsorption table |
| Frame | welded structure |
| X, Y,Z Structure | HIWIN Rail Linear Guide and rack gear transmission |
| Z Structure | HIWIN Rail Linear Guide and TBI Ball Screw |
| Max. Power Consumption | (Without Spindle) 3Kw |
| Max. Rapid Travel Rate | 60000mm/min |
| Max. Working Speed | 25000mm/min |
| Spindle Power | 4*3.0 kw air cooling spindle |
| Spindle Speed | 0-18000RPM |
| Drive Motors | Stepper Motor |
| Working Voltage | AC220/380V, 50/60Hz |
| Command Language | G Code |
| Operating System | Ncstudio or Mach3 PC Software |
| Computer Interface | USB |
| Flash Memory | 128M(U Disk) |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3/Ucancame V9 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
| Inverter | Fuling or Delta |
| Limit switch | OMRON |
| Driver | Yako |
| Support | By calling or email or training |

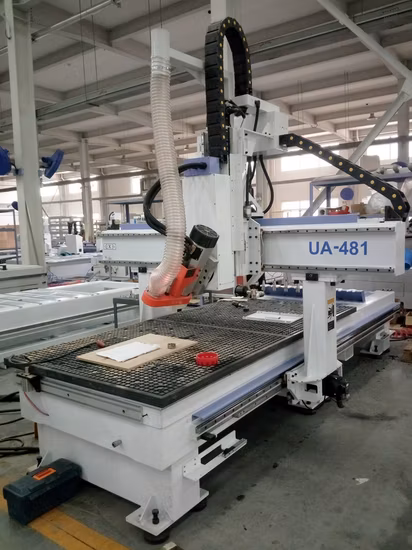

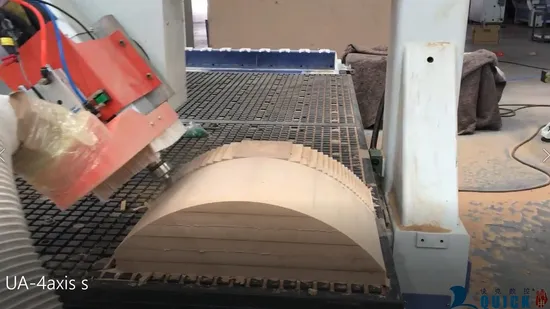

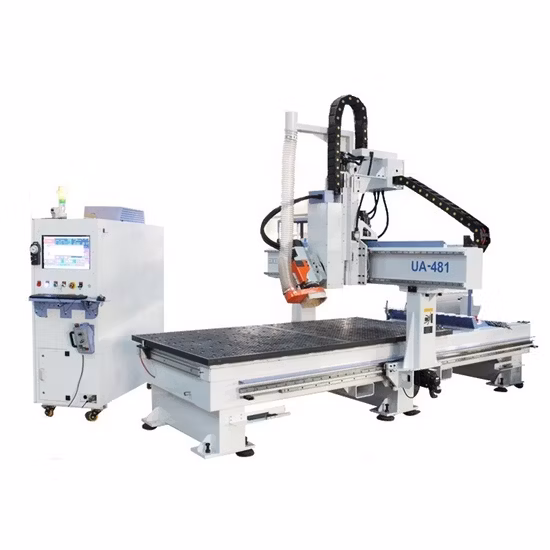

1.Adopts imported ball screw ,long life time,high precision.2. Moving gantry, good moving stability.3. High power variable frequency spindle, infinitely variable speed, low noise.4. Equipped with all cutters and engraving relief function.5. PCI control system, displaying 3D tracking status, breakpoint memory.6. Key board and mouse can be operated 3D analog display function.7. Machine with high cutting speed and good moving stability.8. Keeping high precision of small machine, and can be engraved large objects.Detailed Pictures
FAQ
1,Can you offer good price with fine quality also?
Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price.
we are not sure if it is lowest or highest,But we will be offering reasonble.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines.
2,We will be protetcted if we are paying for orders?
Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon. and these years alibaba trade assurance you could rely on,you will be protected very well.
3,What's your warranty? can you do more service for us? we wish woud be protected after purchasing machine.
We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours.
4,What's your production time? we want faster shipping time also.
Mostly machine we have in stock, some machine we produce need about 7-10days. make fast shipment always. shipping time depends on shipping company.
