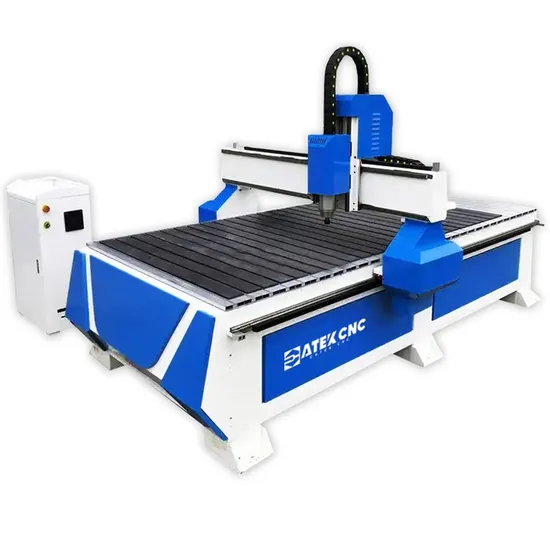

Hot Selling 1325 4*8FT CNC Wood Router Engraving Machine Multi
Overview Package Size310.00cm * 160.00cm * 120.00cm Package Gross Weight1200.000kg .lc-a-img { position: relative; width
Description
- Overview
- MACHINE PHOTOS
- PRODUCT PARAMENTERS
- DETAILS IMAGES
- SAMPLE DISPLAY
- Company Profile
- CUSTOMER PHOTOS
- COMPANY CERTIFICATION
Basic Info.
| Model NO. | CK-1325 |
| Condition | New |
| Certification | ISO, CE, RoHS |
| CNC or Not | CNC |
| Voltage | 380V |
| Spindle Power | 3.5 Kw Water-Cooled Variable Frequency Spindle |
| Drive Mode | Servo Motor/Servo Drive |
| Mesa | Aluminum Alloy T-Slot Workbench |
| Guide | Taiwan Hiwin High Precision 25 Linear Square Rail |
| Vacuuming Method | 3kw Double-Drum Dust Collector |
| Control System | Weihong Nc Studio V5.4.49 Optional DSP or Nk105 |
| Security System | Xyz Three-Axis Photoelectric Limit |
| Maximum Cutting Speed | 28000mm/Min |
| Maximum Empty Line Speed | 48000mm/Min |
| Frequency Converter | Best/Hpmont Inverter |
| Transport Package | Export Fumigation-Free Wooden Box |
| Specification | 1300*2500mm |
| Trademark | Catekcnc |
| Origin | China |
| HS Code | 8465990000 |
| Production Capacity | 50pieces/Month |
Packaging & Delivery
Package Size310.00cm * 160.00cm * 120.00cm Package Gross Weight1200.000kgProduct Description
| XYZ work schedule | 1300* 2500 *200mm (customizable) |
| Dragon Gate | Thickened cast iron gantry, cast iron bracket |
| Bed | Machining center bed (heavy duty bed) , independent control cabinet |
| Spindle power | 3.5 KW high speed water-cooled variable frequency spindle |
| Drive mode | Servo Motor/Servo Drive |
| Frequency Converter | Bester/Hpmont inverter |
| Spindle speed | 6000- 24000r/m |
| mesa | Aluminum alloy T-slot workbench (vacuum adsorption workbench optional) |
| Transmission mode | XY axis high-precision ground helical gear transmission + Z axis high-precision TBI screw transmission |
| guide | Taiwan Hiwin high precision linear square rail /slider |
| Equipment Cable | Pure copper high flexible anti-bending cable |
| Tool shank diameter that can be clamped | 3.175mm,4mm,6mm ,, 12.7mm, etc. |
| Control System | Weihong Nc Studio v5.4.49 (optional dsp or nk105, mach3, etc.) |
| Lubrication system | Electric lubrication oil injection maintenance system |
| Operating voltage | AC380V /220V 50/60Hz |
| Compatible Software | Artcam, type3, CAD drawing, CDR, carving, Wentai , powermill, ug, etc. |
| Engraving instructions | Standard G code, u00, mmg, plt |
| Security System | XYZ three-axis photoelectric limit |
| Repeat positioning accuracy | ±0.02mm |
| Engraving accuracy | 0.01mm |
| Maximum cutting speed | 2 8000mm/min |
| Maximum empty line speed | 48000mm/min |
| Machine size | Length 3100 Width 2000 Height 1650 |
| Machine weight | 1200kg |
Standard 3.5KW high-speed water-cooled spindle, maximum speed 24000RM, can quickly process different plates, can clamp a variety of different tools to cope with different processing tasks, optional air-cooled spindle, power can be customizedHigh-precision helical rack and gear, fast transmission speed, high positioning accuracy, low operating noise, and no maintenance required.
The aluminum alloy T-slot work platform is paved with PVC on the surface to keep the workbench flat and can be freely fixed according to the size of the workpiece. It is easy to use and can be equipped with a vacuum adsorption workbench or a pneumatic pressure roller.The fully automatic electric timed lubrication oil pot automatically lubricates the transmission parts of the machine to prevent manual lubrication from being insufficient.
Using Taiwan Hiwin 25MM linear square guide rails and 25MM linear bearings, it has fast running speed, higher precision, low running noise, and can work continuously for 24 hours.High-precision TBI ball screws and Taiwan Hiwin linear square guides ensure smooth movement, processing accuracy and speed, and more precise positioning.
It is equipped with Weihong NCV5.4.49 control system as standard, supports advanced functions such as power-off resume engraving,is easy to use and simple to operate, and can be equipped with DSP handle/NK105 handle or MACH3 control system as optional.Weihong NK105 control handle (optional)
MACH3 control system (optional)RichAuto DSP handle A11 (optional)SAMPLE DISPLAY
Applicable materials: suitable for wood board, density board, MDF board, artificial board, particle board, gypsum board,
multilayer board, plastic, PVC, PCB, acrylic, Chevron board, PTFE board, aluminum-plastic board, aluminum, copper, ABS, PP, PE,epoxy resin, carbon fiber mixture, artificial stone, plexiglass, PVC, KT board, etc.Application industry:
· Furniture industry: wooden furniture, panel furniture, mahogany furniture, cabinets, wardrobes, shoe cabinets, office furniture, custom furniture,wooden doors, tables and chairs, doors and windows, antique furniture, etc.
· Architectural decoration: stairs, architectural models, sand table models, decorative buckle lines, art floats, guard plates, decorative surfaces, etc.
·Advertising production: billboards, logos, three-dimensional characters, acrylic signs, work cards, medals, crystal characters, acrylic light boxes, etc.
· Mold manufacturing: wooden molds, plastic molds, foam molds, copper, aviation wood, auto parts, etc.Company ProfileCUSTOMER PHOTOSCOMPANY CERTIFICATIONFAQ1. Are you a factory or trading company?
We are a certified factory with export licenses.
2. Do you offer OEM services?
Yes, we have 19 years of OEM experience collaborating with global trading partners.
3. What about after-sales service?
* 3-year full machine warranty
* 12-hour guaranteed response time
* 24/7 support via Email/WhatsApp/Skype
4. How to choose the right machine?
Provide your material specs, product dimensions, and functional requirements. We'll recommend optimal solutions based on 19+ years of expertise.
5. Do you provide installation services?
All machines are pre-tested and ready-to-use. Free operation manuals & video guides included. Onsite commissioning available globally.
6. Can machines be customized?
Customization supported by our engineering team. Your satisfaction is our priority.
7. Can you provide sample processing videos?
Free sample videos available upon providing drawings/photos for functional verification.
