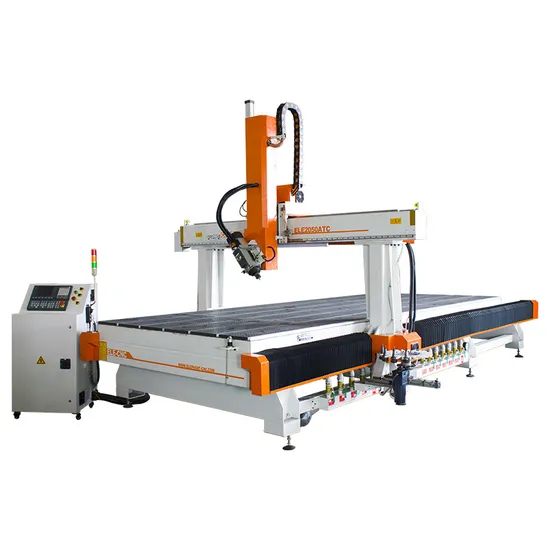

3 Axis 4 Axis Wood Cutting Machine CNC Router Kitchen Cabinet Door

3 Axis 4 Axis Wood Cutting Machine CNC Router Kitchen Cabinet Door

Parameters: PS:All the working area and specifications can be customized according to your requests. Application 1. Wood
SHARE

Description

Basic Info.
Model NO. ELECNC1325
Spindle Layout Spindle Over
Spindle Number Single-Spindle
Feed Mode Mechanical
Controlling Mode CNC
Certification CE, ISO, SGS BV TUV
Customized Customized
Condition New
Color Customized
After-sales Service One Years
Working Area 1500*3000*400mm
Control System Taiwan Syntec /Lnc Controller
Spindle 9kw Atc Air Cooling Spindle, ISO30, Er32
Linear Guide Taiwan Linear Guide with Dust Proof
Spindle Speed 0-24000rpm
Reducer Japan Shimpo Reducer
Inverter 11kw Fuling Inverter
Work Table Vacuum Work Table
Working Voltage 220V 1pH/3pH 50Hz/60Hz 380V 3pH 50Hz/ 60Hz
Working Accuracy ±0.03mm
Lubrication System 1.5L Automatic Lubrication System
Machine Structure Heavy Duty Body with Quenching Treatment
Transport Package Standard Marine Export Plywood Case.
Specification 1500*3000*400mm
Trademark BLUE ELEPHANT
Origin China
Production Capacity 200 Set/Sets Per Month
Product Description

Best quality wood working cnc router 3d milling machine 4 axis 1530 ATC carving machine with Automatic Tool Changer


Parameters:

Description

Parameter

Model ELECNC1530ATC-4A

X,Y Working Area

1500*3000mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc
Z axis travel 400mm, option: 500mm, 600mm, 700mm, etc
The 4th axis can swing from -90 degree to +90 degree
Spindle type 9kw ATC air cooling spindle, lsO30, ER32

Inverter type

11KW

Drilling bank

Dptional

Tool magazine

Linear type auto tool changer
Option: Carousel type auto tool changer

Control system

Taiwan SYNTEC /LNC controller option: Ncstudio

Reducer

Japan SHlMPO reducer

Machine structure

Heawy duty body with quenching treatment

Work table

Vacuum work table

Linear guide

Taiwan Linear guide with dust proof

Lubrication system

1.5L automatic lubrication system

Tool calibration

Automatic tool sensor calibration

Cables

Germany lgus cables with CE, cUL certificate

Traveling speed

80m/min

Working speed

0-25m/min

Re-positioning accuracy

±0.03mm

System resolution

±0.0025mm

Working accuracy

±0.03mm

Working air pressure

0.6MPa

Working voltage

220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/60HZ

PS:All the working area and specifications can be customized according to your requests.

Application

1. Wood furniture industry Doors; Cabinets; Tables; Chairs. Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, cupboard doors, interior doors, sofa legs, headboards and so on.2. Advertising industry Signage; Logo; Badges; Display board; Meeting sign board; Billboard Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.3. Die industry A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.4. Artwork and Decoration wood crafts; gift box; jewelry box5. Others Relief sculpture and 3D engraving and Cylindrical object.

Packaging & Delivery:

Packaging Details: Three layers--- -The innermost layer is EPE pearl cotton film package; -The middle layer is wrapping up with environmental protection material ; -And the outermost layer is winding up with PE stretch film. They're very environmentally friendly. If you need a wooden box, we will make a wooden box outside the machine.Delivery Detail: Shipped in 15 working days after payment.

Our Service:

1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.

2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.

4, We offer 24 hours technical support by call, and email.

5, Our technician can give you remote guide online(Skype or MSN) if you have any question.

6, We can record videos of operating the laser machine.

7, Free training course in our factory.

8.Machine will be adjusted before it is delivered, operation disk/CD was included.

Welcome to our factory:

  • Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
  • We have our R & D department, Quality control department, and after sale & service department.
  • Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
  • We had got CE and ISO9001 certification always offer best quality machine.
  • Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
