Rotary Attached 6090 4 Axis CNC Router for Cylinder
Description
Basic Info.
| Model NO. | DW6090 |
| Spindle Number | Single-Spindle |
| Feed Mode | Manual |
| Controlling Mode | CNC |
| Certification | CE, FDA |
| Customized | Customized |
| Condition | New |
| Warranty | 12 Months |
| Rotary Size | Can Be Customized |
| Machine Color | Can Be Customized |
| Spindle Power | 2.2kw Water Cooling |
| Transport Package | Playwood Box |
| Specification | 900x600mm |
| Trademark | DWIN |
| Origin | Jinan City Shandong Province China |
| HS Code | 8465990000 |
| Production Capacity | 50 Sets Per Month |
Product Description

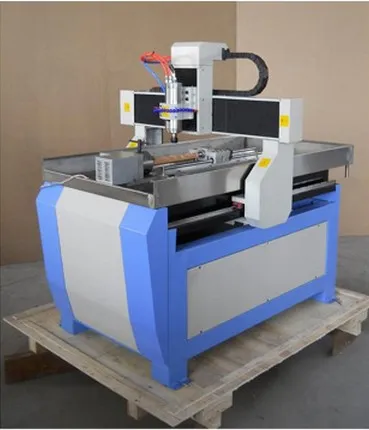

Rotary Attached 6090 4 Axis CNC Router for CylinderThis 6090 cnc router attached with rotary so it is called 4 axis cnc router, it can be used to engraving on round material and cylinder materials, the small design makes it very suitable for samll factory, and also suitable for mass production for large factory.
This machine use DSP handle to control the machine, easy to learn and easy to control, we also can customize the machine for you.
Machine Features :
1. DW6090 CNC router is one high precision small CNC engraver with 2D& 3D CAD/ CAM machining capabilities.
2. It is the best choice for the Engraver,Sign maker,Panel maker and Educational Institution.
3. The machine structures are designed with cast steel and with Germany ball screws transmission for x, y & z axes. It is small enough to fit into almost any work space. Specifications:
Samples :
| 4 axis cnc router | ||
| 1 | X,Y,Z Working Area | 600x900x100mm |
| 2 | Table Size | 1560X1050mm |
| 3 | X,Y,Z Traveling Positioning AccuraIT | ±0.03/300mm |
| 4 | X,Y,Z repositioning Positioning AccuraIT | ±0.02mm |
| 5 | Table Surface | T-slot Extrusions |
| 6 | Frame | Welding steed |
| 7 | X, Z Structure | Ball Screw |
| 8 | Y Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max. power Consumption | 0.8Kw |
| 10 | Max. Rapid Travel Rate | 8000mm/min |
| 11 | Max. Working Speed | 6000mm/min |
| 12 | Spindle Power Motor | 2.2Kw self cooling spindle |
| 13 | Spindle Speed | 0-24000RPM |
| 14 | Drive Motors | Stepper system |
| 15 | Working Voltage | AC220V/50/60Hz |
| 16 | Command Language | G code |
| 17 | Operating System | DSP System (Option:Mach3 PC Software) |
| 18 | Interface | USB |
| 19 | Flash Memory | 128M(U Disk) |
| 20 | Collet | ER16 |
| 21 | X,Y Resolution | <0.01mm |
| 22 | Software Compatibility | Type3 software, Ucancam software, (Option: Artcam software) |
| 23 | Running Environment | Temperature: 0°C~45°C Relative humidity: 30%~75% |
| 24 | Packing Size | 1710 x 1250 x 1585mm |
| 25 | Net Weight | 180KG |
| 26 | Gross Weight | 272KG |
