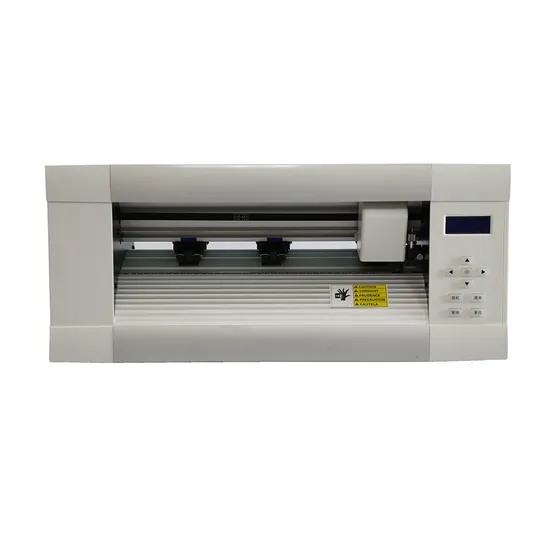

Mc330 Cutting Flatbed Plotter 4mm Print and Cut Plotter Small A3 Cutting Plotter Cheap

Mc330 Cutting Flatbed Plotter 4mm Print and Cut Plotter Small A3 Cutting Plotter Cheap

Overview Product Description Strong Integrated Carriage wider range of applications Three Interfaces U Disc Port(MH,MG,M
SHARE
Send inquiry

Description

  • Overview
  • Product Description
  • Specification
  • Effect Display
  • Enterprise Show
Overview
Basic Info.
Model NO. DSA-MC330
Usage Cut Vinyl Sticker
Max Cutting Width 430mm
Size 750*330*400mm
Cutter Pressure 0-500g/0-1000g (Optional Configuration)
Paper Feed Width 430mm
Cutting Speed 800mm/S
Mechanical Precision 0.05mm 0.05mm
Product Name Vinyl Plotter Printer
Voltage 110/220V
Cutting Width 330mm
Model Mc330(12′′)
Key Words Vinyl Cutter Machine
Max Paper Feed Width 330mm
Repeatable Precision < +-0.1mm
Transport Package Export Wooden Box Packaging
Specification custom
Trademark custom
Origin Guangdong, China
Production Capacity 100 Set/Sets Per Month
Product Description

Product Description

Mc330 Cutting Flatbed Plotter 4mm Print and Cut Plotter Small A3 Cutting Plotter Cheap

Mc330 Cutting Flatbed Plotter 4mm Print and Cut Plotter Small A3 Cutting Plotter Cheap

Strong Integrated Carriage

wider range of applications

Mc330 Cutting Flatbed Plotter 4mm Print and Cut Plotter Small A3 Cutting Plotter Cheap

Three Interfaces

U Disc Port(MH,MG,MS Series only),work without Computer

Mc330 Cutting Flatbed Plotter 4mm Print and Cut Plotter Small A3 Cutting Plotter Cheap

Big LCD Display

easy-touch silicone keypad with highlight

Mc330 Cutting Flatbed Plotter 4mm Print and Cut Plotter Small A3 Cutting Plotter Cheap

Strong Pinch Roller

attractive and durable

Integrated Grit Roller

High precision

Standard Blade

Each machine with 1 blade holder,3 blades

Specification



MC Series vinyl cutter can work without computer.Just output you file to U-Disc.More convinient! Also support internet port. Another function is repeat function. 1.With CCD camera (automatic contour cut function) 2.High force to cut reflective film/retro film 3M (optional ) 3.Real high speed 128MB memory 4.High precision steel roller: guaranteed 5m without deviation of paper feeding 5.Low noise:ultra quiet design 6.High performance 32-bit processor with ARM Cortex-M3 7.Work with U disc directlly

Model MC330(12'') MC630(24'') MC1200(48'') MC1500(59'')
Media Way Desk cutter Floor Stand Floor Stand Floor Stand
Main Board High-performance & intelligent ARM 32 CPU; 128MB memory
Driver High speed stepping motor, micro-step driver
Max Paper Feed Width 430mm 730mm 1370mm 1600mm
Max Cutting Width 330mm 630mm 1270mm 1500mm
Max Cutting Speed 800mm/s
Cutting Force 0-500g/0-1000g (optional configuration)
Mechanical Precision 0.05mm
Repeatable Precision < +-0.1mm
Plotter Instruction DM-PL/HP-GL Automatic Identification
Interfaces USB /Ethernet port / U-Disc port
Power Supply AC110V /220V±10%, 50Hz/60Hz
Software Contour cutting function; software signmaster included
Noise at Work ≤45 DB
External Dimension 750*330*400mm 1045*330*400mm 1590*330*400mm 1890*330*400mm
Shipping Weight 15kgs 23kgs 33kgs 50kgs
