Atc 1325 Woodworking Engraving Machine Automatic Tool Change CNC Router Supplier 4*8FT CNC Router 4 Axis Wood CNC Router for Sale
Overview Scope Of Application Solid and scientific packaging is also part of the quality of the machine. Different packa
Description
- Overview
- Product Description
- Detailed Photos
- Packaging & Shipping
- Company Profile
- Customer Visit
Basic Info.
| Model NO. | A8-1325/1530/2030/2040 |
| Condition | New |
| Certification | CE |
| CNC or Not | CNC |
| Voltage | 380V |
| Key Words | Wood/Working CNC Router |
| Working Area | 1300*2500 |
| Max.Rapid Trave | 45m/Min |
| Max.Working Sp | 30m/Min |
| Product Name | A8-1325/1530/2030/2040 |
| Spindle Power | 9.0kw Atc Air-Cooled ISO30-Er32 Spindle |
| a-Axis Swing | Spindle Swing 180° |
| Inverter | Delta High Frequency 11kw Inverter |
| X,Y-Axis Motors and Reducer | Syntec 1000W AC Servo Motor with Planetary Reducer |
| Z-Axis Motors | Syntec 1000W AC Servo Motor with Brake |

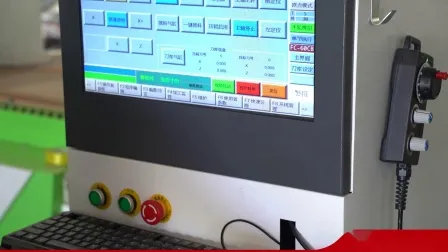

| Control System | Syntec 60we Bus Control System (4-Axis)) |
| Software | Artcam with Post Processor |
| Optional Parts | Carousel Typr 8-12 Tools Changer Magazine |
| Transport Package | Wooden Box |
| Specification | 1300*2500*300 |
| Trademark | SIGN CNC |
| Origin | China |
Product Description
Scope Of Application
Solid and scientific packaging is also part of the quality of the machine. Different packaging methods can be provided according to different loading methods.
Product Description
ATC 1325 China Automatic Tool Change Cnc Router Supplier 4*8ft Cnc Router 3 Axis Wood Router Machine PriceDetailed Photos

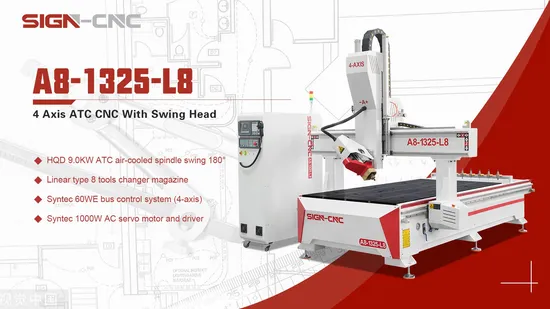

A8 series of machines are equipped with ATC spindle which can swing 180° (left and right ±90° ),mainly used for curved surface processing, such as curved cabinet door, and also used for miling the lockhole and hinge hole of wood door. Furniture: wooden door, windows, tables and chairs,cabinets and panels, 3D plate,MDF,computer desk.Advertising: billboard, logo, sign, acrylic characters cutting.| Model | A8-1325-L8 | |
| Working area | 1300*2500mm | |
| Z feeding | 300mm | |
| Frame structure | Steel casting-welding | |
| Type of table cover | Vacuum table with T-slot | |
| Vacuum pump | 7.5kw air cooling | |
| Z axis transmission | Ball screw and 25mm square guide rails | |
| X Y axis transmission | 25mm square guide rails + Helical rack | |
| Max. Rapid Travel Rate | 45000mm/min | |
| Max. Working Speed | 30000mm/min | |
| Operating voltage | AC 380V/50Hz | |
| Spindle power | 9.0KW ATC air-cooled ISO30-ER32 spindle | |
| Tool Magazine | Linear type 8 tools changer magazine | |
| Type of cooling | Air cooling | |
| Spindle Speeds | 0-24000rpm/min | |
| Drive motor type | AC servo motor and driver | |
| operating system | Syntec 60WE control system | |
| Dust Collector | 3kw with double bags | |
| Lubrication system | Automatic | |
| Supported software | Artcam with post processor | |
| Operating conditions | Humidity: 30% -75%, temperature: 15 - 45 degree | |
| Warranty | Two years | |
